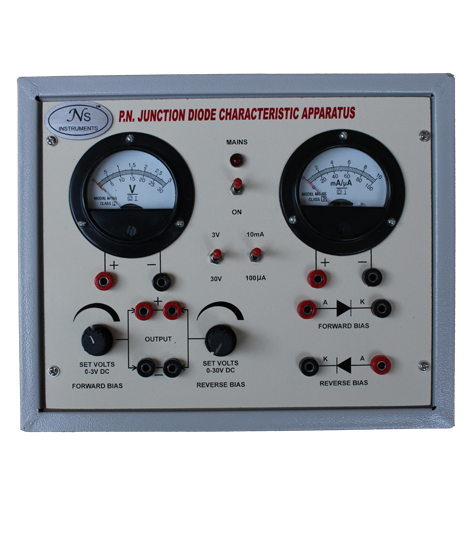

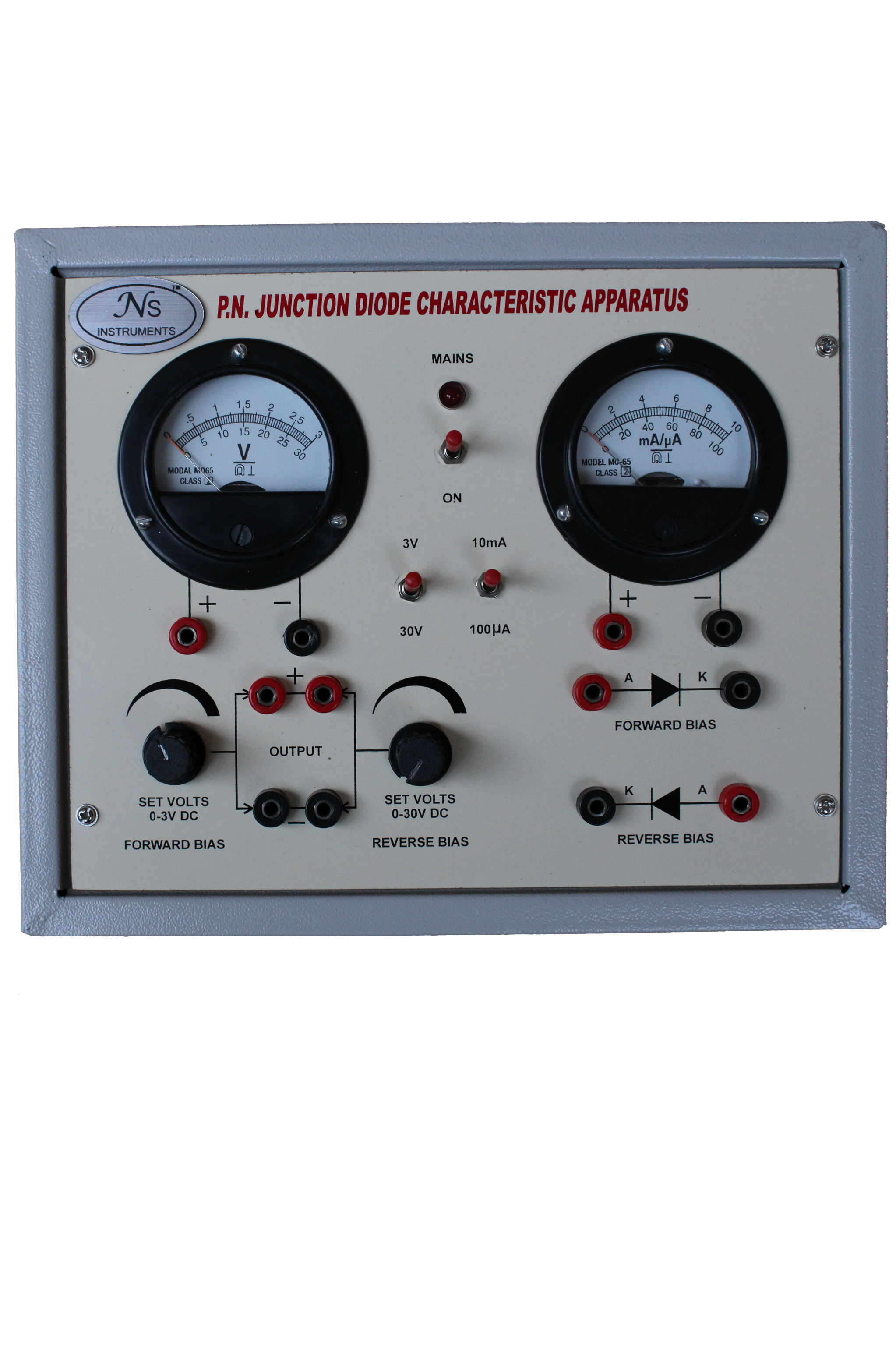

P N Junction Diode Characteristics Apparatus

P N Junction Diode Characteristics Apparatus has been designed to plot forward and reverse bias Characteristics of P N Junction Diode.
The instrument comprises if the following builtin parts:

1. Two continuously variable DC Regulated power supplies of 0-30Volts & 0-3Volts
Specifications of Regulated Power Supply:
Input Voltage : 230V ± 10% AC, 50 Hz
Load Regulation : ±0.2%
Line Regulation: ±0.05%
Ripple: Less than 3mV R.M.S.
Protection against Short Circuit & Overload
2. Two meters to measure voltage & current are provided on the front panel with connections brought out on sockets / terminals.
3. Two P N Diodes are mounted inside the cabinet with connections brought out on sockets to plot the forward and reverse bias characteristics.
