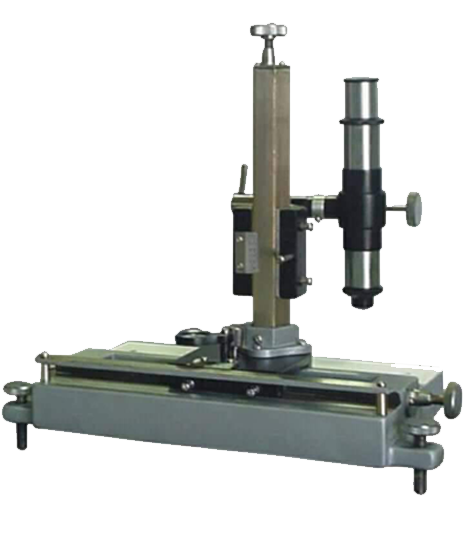

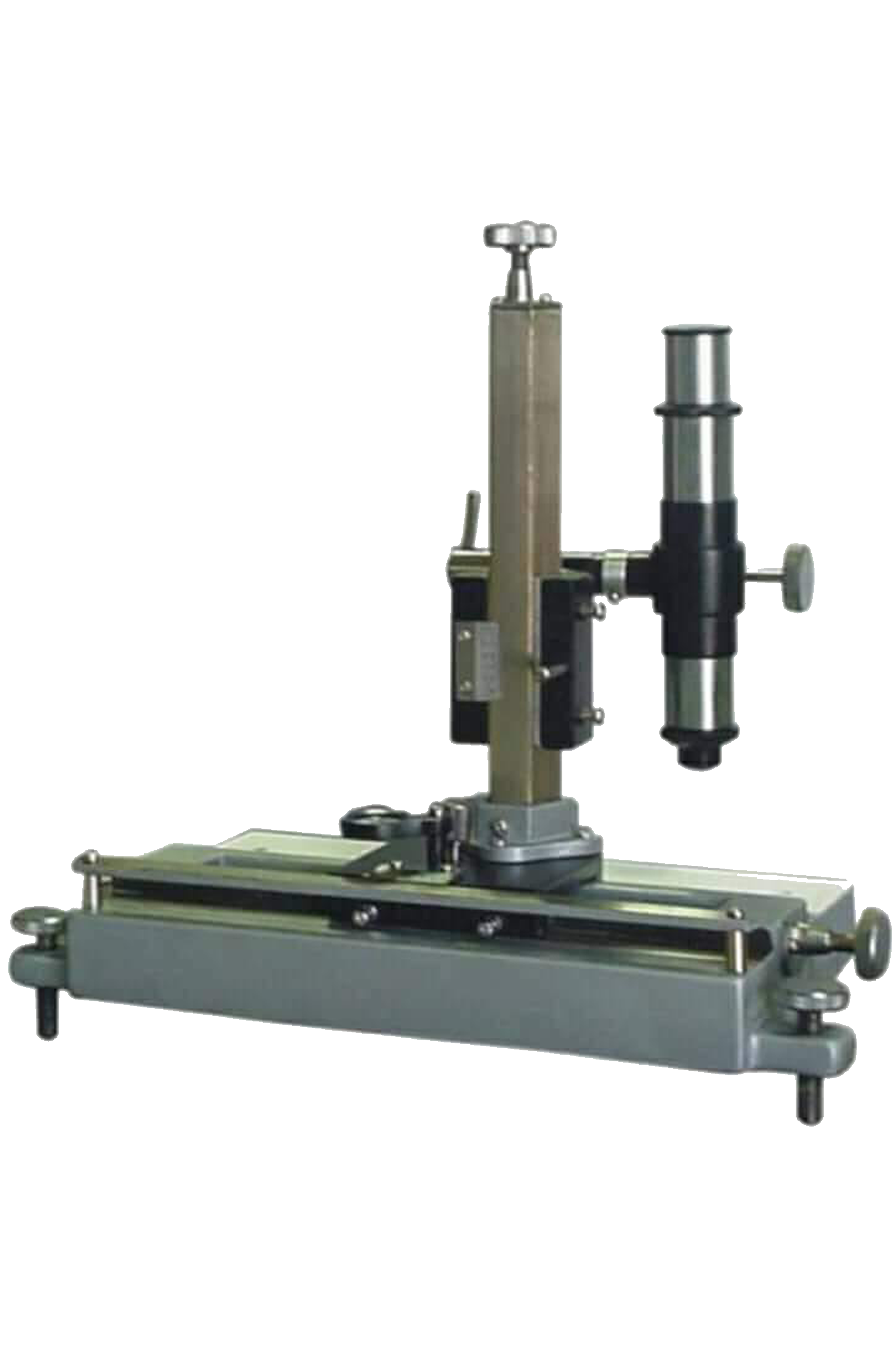

Travelling Microscope

Travelling Microscope designed to meet the requirements of Research, Colleges, Schools and Industrial laboratories. They are used for accurate measurement of the diameters of different objects. They are also used in Physics Laboratories for more accurate determination of small variation in the liquid levels, manometers, the refractive index of liquids as well as in surface tension & viscosity experiments.

Travelling Microscope is extensively used in Research, Colleges, Schools and Industrial laboratories for accurate measurement of the diameters of different objects.

Technical Specification

Base                :     Iron

Scale                :      Aluminum Graduated

Piller                 :    Aluminium

Eyepiece        :     10X (Ramsden)

Vertical Scale

Main Scale        :     0-150mm

Vernier Scale        :     0-1mm

Least Count        :     0.01mm

Horizontal Scale

Main Scale        :     0-180mm

Vernier Scale        :     0-1 mm

Least Count        :     0.01mm
